Product Description

Fabric Specification

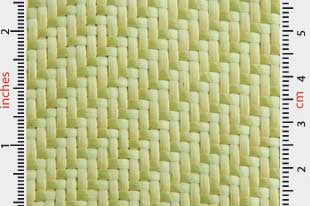

Width (mm) Weight (g/m²) Thickness (mm) Ends/cm Picks/cm Warp Fibre Weft Fibre Weave
1000 300 0.47 4.75 4.75 Twaron 2200, 3220 D’tex Twaron 2200, 3220 D’tex 2/2 Twill

Units of Sale

This roll is 1m (39″) wide and the fabric is sold by the linear metre. The unit price shown is for 1 linear metre, volume discounts automatically apply for larger quantities of fabric.

Please purchase the number of linear metres you require. When purchasing multiple metres the fabric will be supplied in one continuous length on a roll.

Uses and Suitability

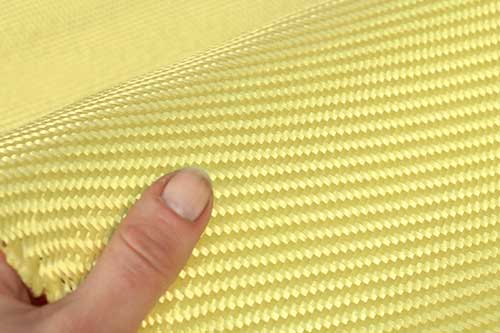

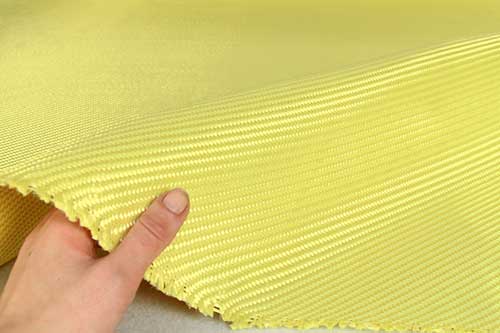

Heavyweight 300g 2/2 twill weave Aramid fabric can be used on its own or in conjunction with other reinforcement fabrics (such as carbon fibre) to achieve a very strong and impact resilient composite.

Aramid provides very high resistance to impact and abrasion and is much more resilient to fracture separation than other reinforcements (including carbon fibre).

Aramid can be laminated in just the same way as carbon fibre. It is suitable for use in wet-lay, vacuum bagging or resin infusion.

For maximum performance Aramid should always be laminated with Epoxy resin.
