Product Description

Specification

Fibre Type 3k Torray T300
Standard Diameter (at 45°) 10mm
Minimum Diameter 4mm
Maximum Diameter 13mm
Weight (per linear metre) 11g
Fabric Weight (gr/m²) 350
Thickness at 50% FV mm 0.40

Units of Sale

This carbon fibre braid is sold by the linear metre (with the braid at its natural 45° orientation) in a continuous length. For example; if you purchase a quantity of ‘5’ you will receive a continuous length of braid 5m long. There is no minimum order quantity but several volume discounts are available for larger quantities.

Product Description

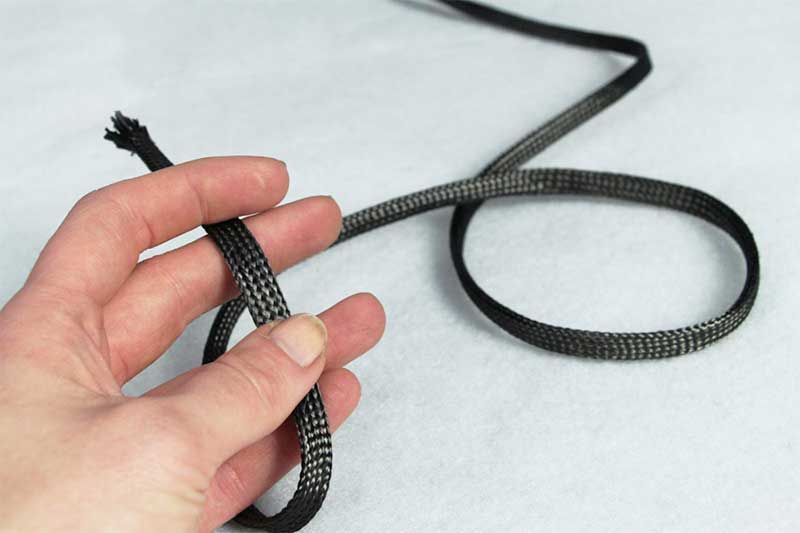

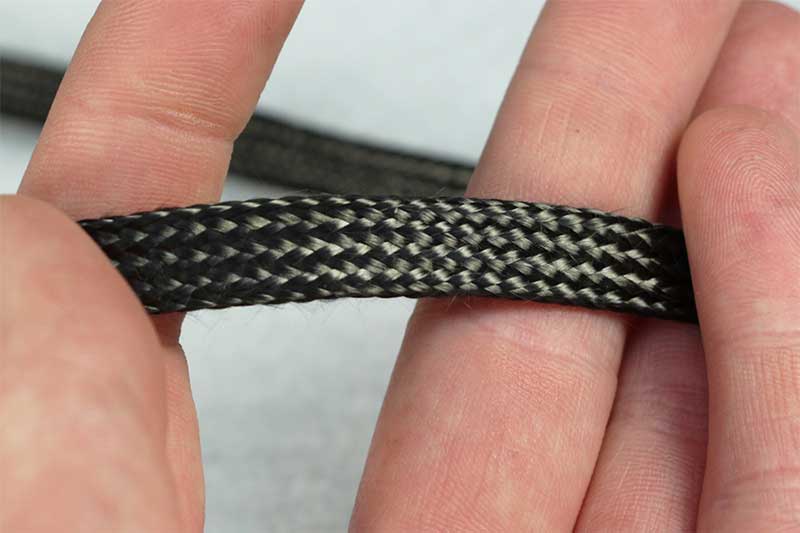

Carbon fibre braided sleeve made from continuously woven biaxial carbon fibre. This very light-weight, 10mm nominal diameter braid is woven from 3k T300 fibre in a 2/2 twill weave pattern and is suitable for a range of applications including making tubing and reinforcing tubes, rods and poles.

This 10mm sleeve can be expanded by up to 30% and contracted by up to 70% making it suitable for use making tubing with a diameter of between 4mm and 13mm.
